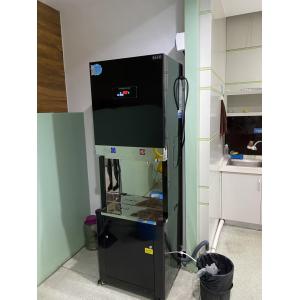

Seawater Desalination Drinking Water System
The direct-drinking hot and cold water pipeline system constitutes an integrated drinking water solution. Its core principle involves pre-treating the water source through purification equipment, followed by rapid temperature adjustment, heating, or cooling via the pipeline machine. The following provides a detailed analysis of its operational mechanism:
I. System Components
Water Purification Equipment
Typically employs reverse osmosis (RO) technology, utilising multi-stage filtration (such as activated carbon adsorption and RO membrane filtration) to remove harmful substances including heavy metals and bacteria, ensuring water quality meets direct drinking standards.
Pipeline Machine
Water Source Connection System: Connects to the purification equipment via food-grade piping to convey purified water.
Heating System: Utilises electric heating (e.g., quartz tubes, thick-film heating elements) or heat exchange technology to achieve multi-stage temperature adjustment within 3 seconds (e.g., 45°C for formula preparation, 100°C boiling water).
Cooling System: Divided into electronic cooling (low power consumption but lower efficiency) and compressor cooling (high efficiency but higher noise levels).
II. Operational Process
Purification Stage
Raw water undergoes RO membrane filtration before entering the purified water tank, with ozone or UV sterilisation ensuring water safety.
Water Supply Stage
Purified water is conveyed via recirculation pipes to the dispenser, preventing secondary contamination.
Temperature Adjustment Stage
Heating: Electric heating elements rapidly raise temperature, with precise regulation by the thermostatic system.
Cooling: Refrigerant circulation absorbs heat, lowering water temperature to 4–12°C.
III. Technical Features
Energy-saving design: Select models employ heat recovery technology, preheating to 85°C before further heating, achieving over 80% energy savings.
Safety protection: Operates at atmospheric pressure with water-electricity interlock valves and a ‘no water, no dispensing’ mechanism to ensure operational safety.
IV. Application Scenarios
Suitable for islands, vessels, households, schools, hospitals and similar settings. Regular filter cartridge replacement and pipeline cleaning are required to maintain performance.
........................................................................................................................................................................................................................................
........................................................................................................................................................................................................................................
Note: Due to product specificity need to buy the pro please contact our customer service, customer service will be based on the pro's water consumption and water quality problems to recommend the right products to the pro, in order to avoid unnecessary future trouble please do not blindly buy equipment, such as the need for specific details of the specifications and parameters or picture trouble pro contact customer service, we will answer the pro's questions, thank you for the pro's support of the net environmental protection, thanks!
